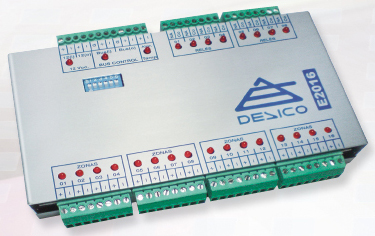

The E2016 module is an electronic card that performs the functions of analogue detection of alarms with line supervision and sabotage of the detector (five states: standby, alarm, crossed line, line cut-off and tamper).
It works integrated with the intelligent substation that is connected to the card bus and can be installed in a distributed way up to a maximum distance of 600 m from the substation.
The module allows the automatic disconnection of the card bus in case of failure, and also enables the remote control of the connection and disconnection to that bus through the monitoring system.
| CAPACITY |
Every subhead office admits up to 8 modules of this type, though they can be mixed by those of 4 zones. The capacity of each one is of:
- Zone inputs: 16
- Outputs: 8
| INDICATORS |
A set of 8 LEDs allows knowing the local status of the module:
- Zone Alarm: A lighting code shows the status of each area (alarm, standby, tamper or disabled).
- Bus: Status of the connection with the card bus.
- Power Supply: Power and failure status of the unit.
- Relays: Activation status of the action relays.
- Tamper: Tamper-alarm status of the remote-station cabinet.
| POWER SUPPLY |
It operates on 12-Vdc external power, with a consumption of 45 mA when in standby mode and a maximum consumption of 175 mA. It also has a voltage alarm and analogue telemetry of the same.
| INSTALLATION |
The bottom of the equipment is prepared for easy installation on a DIN-standard mounting rail. The connection is made via pluggable terminal block.
| CAPACITY | |
| Monitored zone inputs | 16 |
| Action Relay Outputs | 8 |
| Tamper alarm inputs | 1 |
| Direct. occupation of Substation | 4 |
| Maximum number of modules per Substation | 8 |
| ELECTRICAL |
|
| Nominal power consumption in standby | 45 mA |
| Maximum consumption | 175 mA |
| Power | 12 ±1 Vcc |
| COMMUNICATIONS | |
| CONTROL BUS | |
| Installation | Cable approved for RS485, according to ANSI EIS/TIA-485, on Shielded Twisted-Pair (STP) Cables, 0.35 mm section and low capacity (40 to 60 pF / m). |
| Connection | 3 1.5-mm pluggable terminal blocks |
| PHYSICAL |
|
| Dimensions (W x H x D) | 153,0 x 105,5 x 24,0 mm |
| Anchor Type | DIN Rail (35 mm symmetric) |
| Weight (including terminals) | 214,4 gr |
| Temperature range | -10 < > +90 ºC |
| Non-condensing maximum humidity | 90 % |

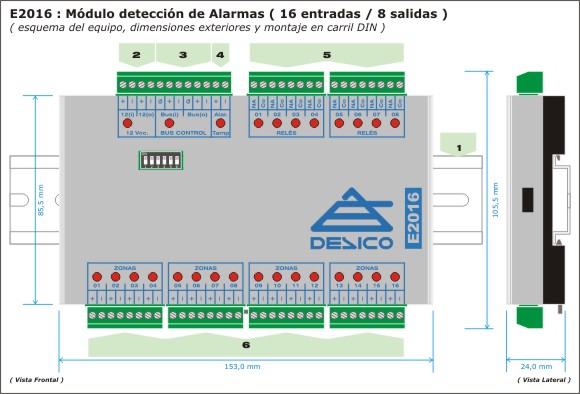

(1) INSTALLATION
- Installation onto DIN-standard mounting rail with spring anchor.
(2) POWER SUPPLY
- External 12 VDC.
- Consumption 175 mA.
- Low-voltage alarm.
- Analogue telemetry.
(3) CONTROL BUS for ZONE MODULES
- Connection bus of the substation input / output modules.
- Automatic disconnection in case of failure.
- Remote on / off switch.
(4) TAMPER ALARM
- Alarm input for protecting the opening of the cabinet that contains the unit.
(5) RELAY OUTPUTS
- Output relays (8) for activation based on automatic input or manual.
(6) ZONE INPUTS
- Zone inputs (16), supervised line.
- Analogue detection.
- Detects 5 states: Standby, Alarm, crossed line, line cut-off and tamper
