Graphic-Capture Terminal of ID documents, Optical Character Recognition (OCR), and digitisation of the real image of the person to accredit.
It is designed to complement the Accreditation-management software (Access and Visits), speeding up in a safer manner the accreditation management and the file documentation.
| DESCRIPTION |

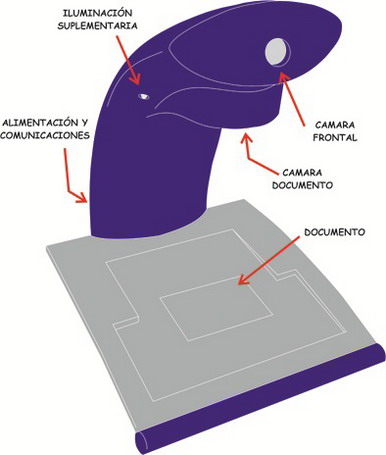

The HTERM is a graphical capture terminal of ID documents, data acquisition and text automatic recognition (OCR), and digitization of the real image of the person to be accredited.
It is designed to complement the Accreditation-management software (Access and Visitors), speeding up the accreditation and file-documentation management quickly and safely.
| APPLICATIONS |
- Management of visits to corporate offices, government agencies ...
- Staff card for the access-control systems with reader terminals.
- Accreditation for social, sports and cultural centres.
- Accreditation for trade fairs and congresses.
- Temporary staff cards or access control to restricted areas
| TECHNICAL SPECIFICATIONS |
- Dimensions (W x H x D): 460x230x275 mm.
- Power supply: 220 Vac
- Consumption: 600 mA.
- Temperature: 0 º C ÷ 50 ° C
- Non-condensing maximum humidity 90%
- Communications Interface: RS232
- Lux Standard: 1000 lux F4.0 (3,200º K)
- Minimum Illumination: 0.1 Lux F1.1
- AGC, Automatic Gain Control
- AWC, Automatic White Control
- Electronic Auto Iris
| INSTALLATION |
All connections are on the back and are properly labeled.
The unit is supplied with its internal power supply with a direct connection to 220 Vac.
The coaxial-video cable and the cable for communication with the computer will be connected to the VIDEO OUT and the RS232 outputs respectively.
| CAMERAS | |
| DNI Capture | |
| Optics Type | Varifocal |
| Standard Lux | 1000 lux F4.0 (3.200ºK) |
| Minimum Illumination | 0,1 Lux F1.1 |
| Gain Control | Automatic |
| White Control | Automatic |
| Iris | Electronic Auto Iris |
| Photo capture | |
| Optical lens type | Fixed 12mm |
| Standard Lux | 1000 lux F4.0 (3,200 K) |
| Minimum Illuminationmínima | 0,1 Lux F1.1 |
| Gain Control | Automatic |
| White Control | Automatic |
| Iris | Electronic Auto Iris |
| ELECTRICAL | |
| Rated power consumption in standby | 600 mA |
| Power supply | 220 Vac |
| COMMUNICATIONS | |
| Video signal | |
| Installation | 75 Ohm Coaxial Cable |
| Connection | BNC (m) - RCA (m) |
| RS232 link | |
| Installation | Cable approved for RS485, according to ANSI EIS/TIA-485, on Shielded Twisted-Pair (STP) Cables, 0.35 mm section and low capacity (40 to 60 pF / m). |
| Connection | DB9 (f) - DB9 (f) |
| PHYSICAL | |
| Dimensions (W x H x D) | 230 x 460 x 275 mm |
| Weight (including terminals) | 194,4 gr |
| Temperature range | -10 < > +50 ºC |
| Non-condensing maximum humidity | 90 % |
